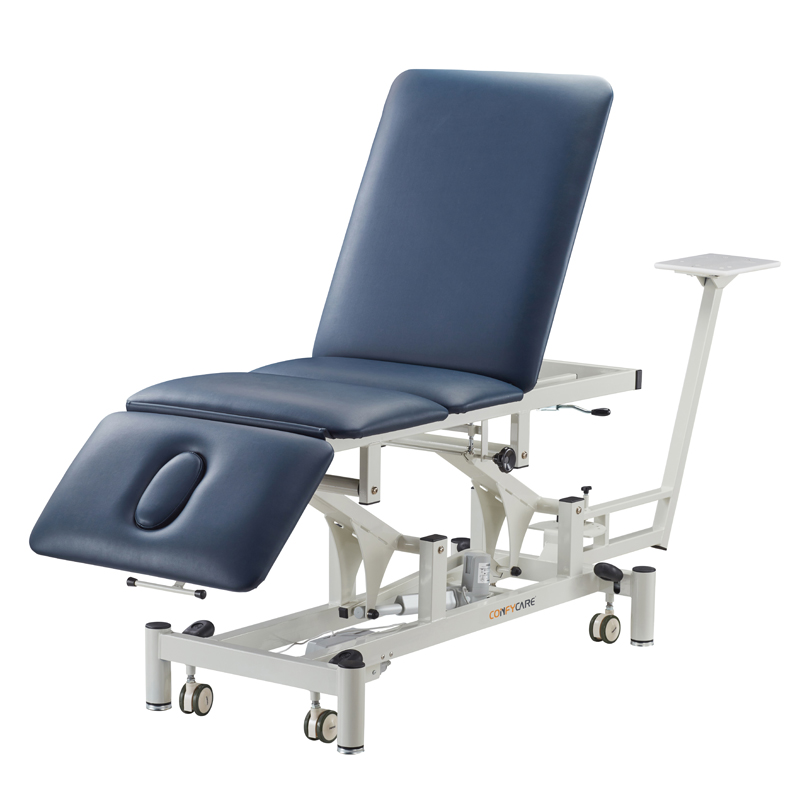

Traction treatment bed

Description：

The Traction treatment bed develops to offer static and intermittent lumbar and cervical traction treatments.

The Traction treatment bed use the taiwan professional medical DC motor putter, low noise, stability and strong.

Please noted, this table don't have traction machine.

Youtube video link: https://youtu.be/6mxQePywoBs

The operation video: https://youtu.be/lctAed1aX-o

Standard Specification：

1. One electric motor, standard supports "Timotion" brand for Hi-Lo function..

2. Height control from 50cm to 92cm in approx 30 seconds by footbar system.

3. Adjustable head section featuring single gas struts, angle adjustable from -45° to +35°.

4. Adjustable backrest featuring single gas struts, angle adjustable from 0° to +65°.

5. Max traction distance 10cm (between thoracic and lumbar section).

6. Accessories: Traction stand and traction stool, but not include traction machine.

7. Traction treatment bed Able to lift up to 250kg working weight from its lowest height.

8. Retractable castors 75mm for excellent mobility and safety.

9. Traction treatment bed sleek design with four rounded frame legs for safety.

10. Adjustable feet on four frame legs work for uneven surfaces.

11. Fire/stain/mildew/oil/water/wear resistant Med PVC available in 6 kinds of colors.

12. Certificates: CE, FDA, ISO13485-2016, EN60601.

Standard Options：

1. Traction treatment bed EL04F: Foot Switch.

2. Extra 2cm foam thickness for upholstery.

3. Hand switch is available.

4. Paper roll holder is available

5. Fold-down Side Support (Pair)

6. Contact us for more available optional.

Dimensions：

Upholstery Length: 195cm

Headrest Length: 40cm

Thoracic seat length: 39cm

Lumbar seat length: 29cm

Backrest Length: 81cm

Upholstery Width: 70cm

Adjustable Height: 50cm–92cm

Foam Thickness: 5cm

Foam Density: 36g/m2

Open: 195 x 70 x (50-92) cm

Packing: 199 x 75 x 58cm (Heavy carton)

N.W./G.W.: 82/100kgs

20GP/40GP: 36/90pcs

Traction treatment bed Size picture:
