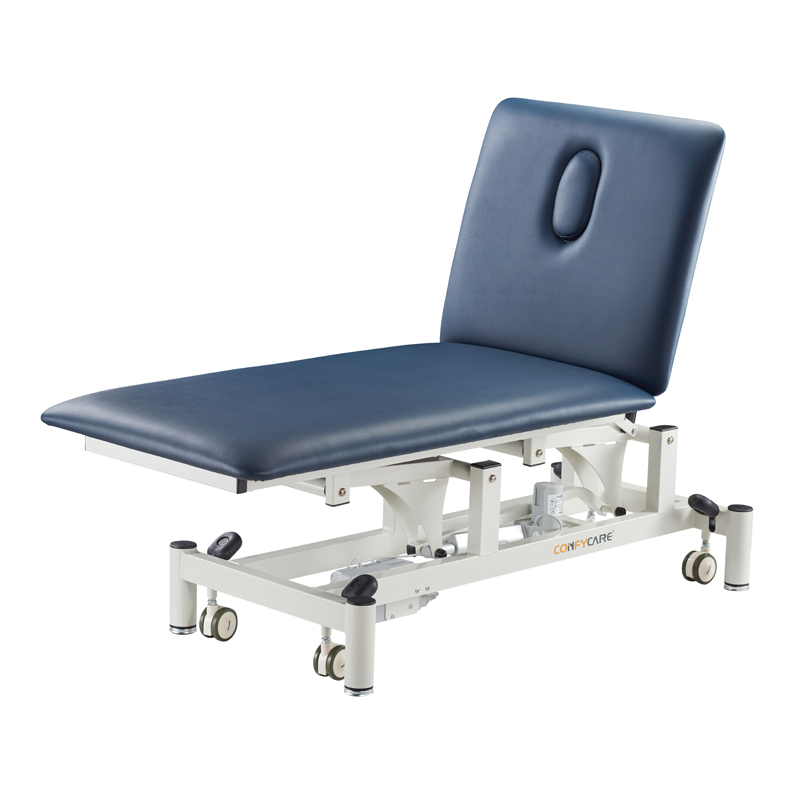

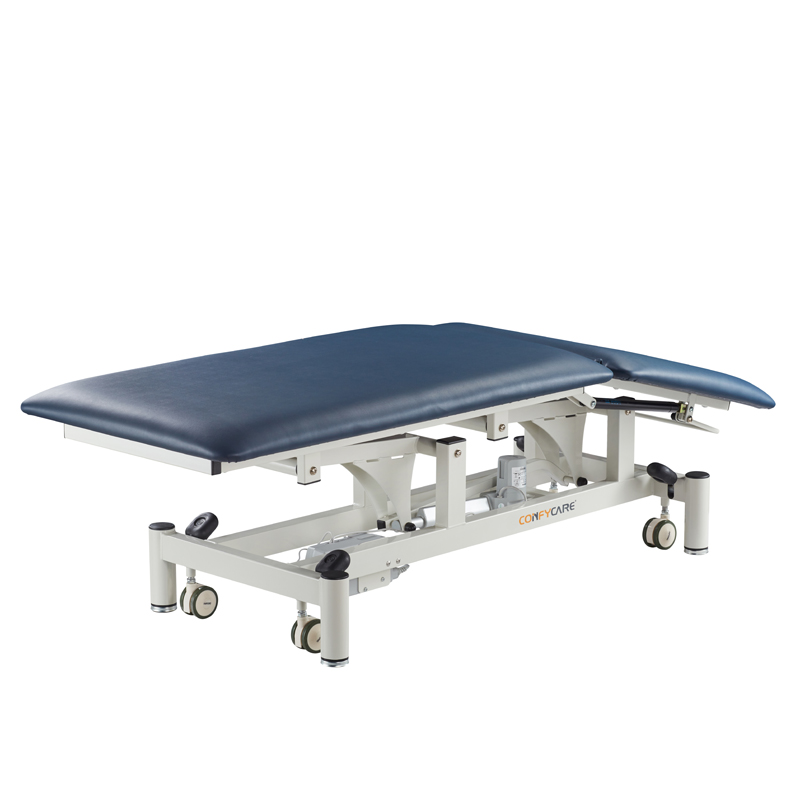

Patient examination table
- COINFYCARE
- CHINA
- 30-40 days
- 1000 pcs
- EL02
This Patient examination table addresses the requirements of a wide range of manual handling issues to benefit both patient and doctor.
Description：
EL series Patient examination table is designed from our 10 years manufactures and 5 years electric tables’ manufactures. We are honest to say those excellent tables are leading items of whole worlds.
This Patient examination table has a very strong table designed to withstand constant heavy use with minimal maintenance.
This Patient examination table addresses the requirements of a wide range of manual handling issues to benefit both patient and doctor.
Youtube video link: https://youtu.be/v-KFYZdoHKs
The operation video link: https://youtu.be/DL57pe3EJqU
Patient examination table EL02 upholstery intallation: https://youtu.be/BgRxN57td4s
Medical stool installation video: https://youtu.be/I1T0aAvg0v8
CFS-01S Installation video: https://youtu.be/Kvi3sHpoD1I
MA03/MA08 Installation video: https://youtu.be/89ItTg2JMiI
Standard Specification：
1. One electric motor, standard supports "Timotion" brand for Hi-Lo function.
2. Height control from 46cm to 90cm in approx 30 seconds by footbar system.
3. Adjustable backrest featuring double gas struts, angle adjustable from -20° to + 70°.
4. Able to lift up to 250kgs working weight from its lowest height.
5. Retractable castors 75mm for excellent mobility and safety.
6. Patient examination table sleek design with four rounded frame legs for safety.
7. Adjustable feet on four frame legs work for uneven surfaces.
8. Fire/stain/mildew/oil/water/wear resistant Med PVC available in 6 kinds of colors.
9. Certificates: CE, FDA, ISO13485-2016, EN60601
Standard Options：
1. Patient examination table EL02F: Foot Switch.
2. Extra 2cm foam thickness for upholstery.
3. Hand switch is available.
4. Paper roll holder is available
5. Fold-down Side Support (Pair)
6. Contact us for more available optional.
Dimensions：
Upholstery Length: 195cm
Back Section Length: 67cm
Body Section Length: 123cm
Upholstery Width: 66cm
Adjustable Height: 46cm – 90cm
Foam Thickness: 5cm
Foam Density: 36g/m2
Open: 195 x 66 x (46-90) cm
Packing: 200 x 72 x 51cm (Heavy carton)
N.W./G.W.: 60/73kgs
20GP/40GP:32/72pcs
Patient examination table Size picture:
