Medical tilt table

Description：

1. Medical tilt table mainly used Single motor control lift, single motor control bed stand.

2. It use high-grade anti-pollution flame retardant PVC.

3. Medical tilt table provides +85° tilting, adds to be used to diagnose dysautonomia or syncope.

4. Medical tilt table can be used for long-term bedridden patients, to prevent the rise of orthostatic hypotension.

5. This item also provide a Hi-Lo function for different situation, such as wheels chairs changing and professional therapy.

Youtube video link: https://youtu.be/NB3kTruYjDE

The Operation video: https://youtu.be/YxcGogBM0cc

Standard Specification：

1. Two electric motors, standard support "Timotion" brand for Hi-Lo & Tiling function.

2. Medical tilt table can lift for height variation and tilting function by hand switch.

3. Height control from 57cm to 104cm in approx 30 seconds by hand switch.

4. Tilting up from 0° to +85° in approx 30 seconds by hand switch.

5. Tilting down from +85° to 0° in approx 30 seconds by hand switch.

6. Adjustable tiling featuring one electric motor, angle adjustable from 0° to +85°.

7. Adjustable backrest featuring double gas struts, angle adjustable from 0° to +75°.

8. Accessories: adjustable belts(3 pcs), adjustable foot plate, active table adjustable.

9. Medical tilt table able to lift up to 250kgs working weight from its lowest height.

10. Brake castors 125mm for excellent mobility and safety.

11. Medical tilt table sleek design with four rounded frame legs for safety.

12. Fire/stain/mildew/oil/water/wear resistant Med PVC available in 6 kinds of colors.

13. Certificates: CE, FDA, ISO13485-2016, EN60601.

Standard Options：

1. Contact us for more available optional.

Dimensions：

Upholstery Length: 194cm

Upholstery Width:64cm

Adjustable Height: 57cm–104cm

Foam Thickness:4cm

Foam Density:36g/m2

Open: 194 x 64 x (57-104) cm

Packing: 209 x 91 x 64cm(Heavy carton)

N.W./G.W.: 110/130kgs

20“GP/40"HQ: 15/44pcs

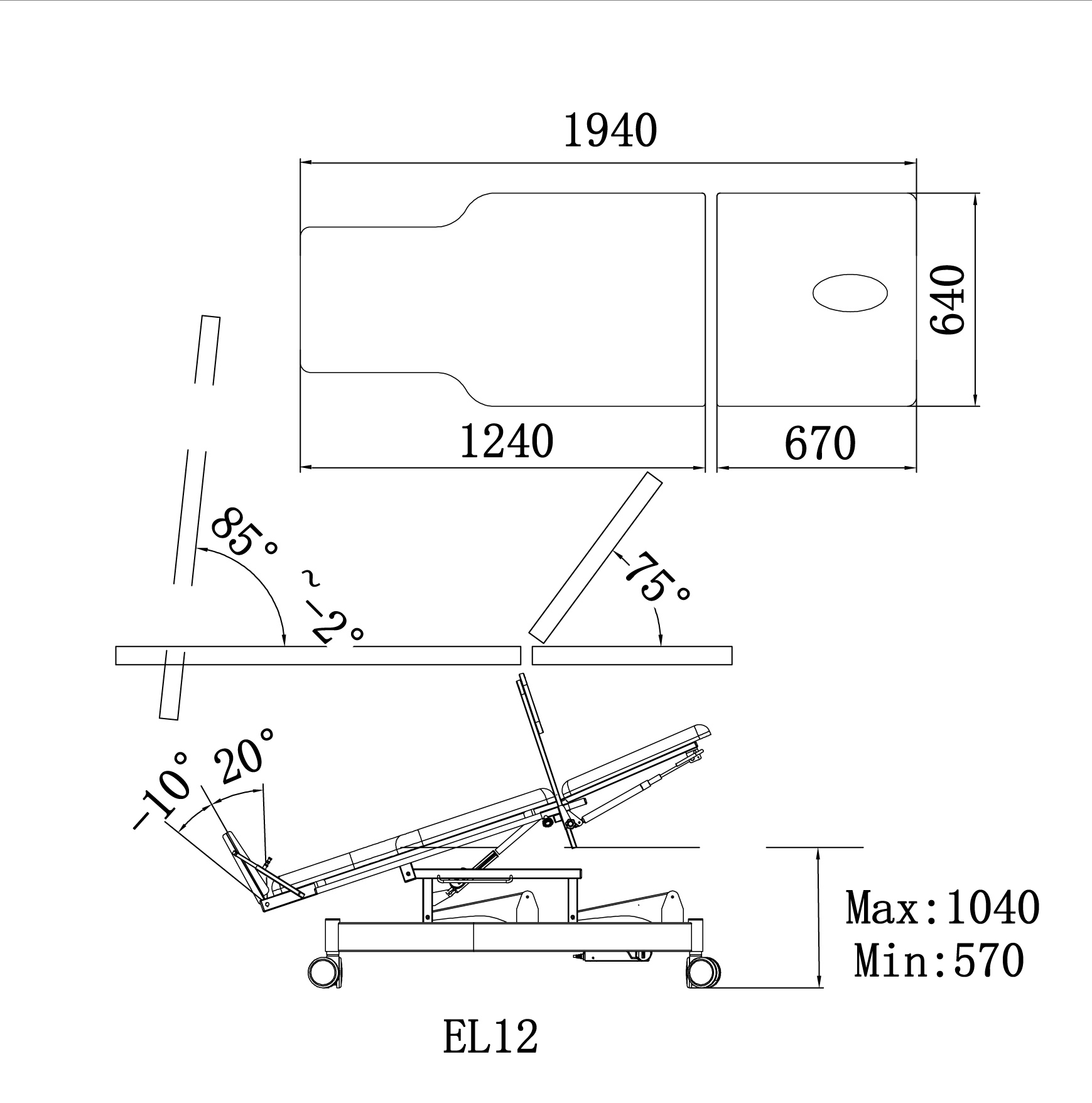

Tilt table bed Size picture：
