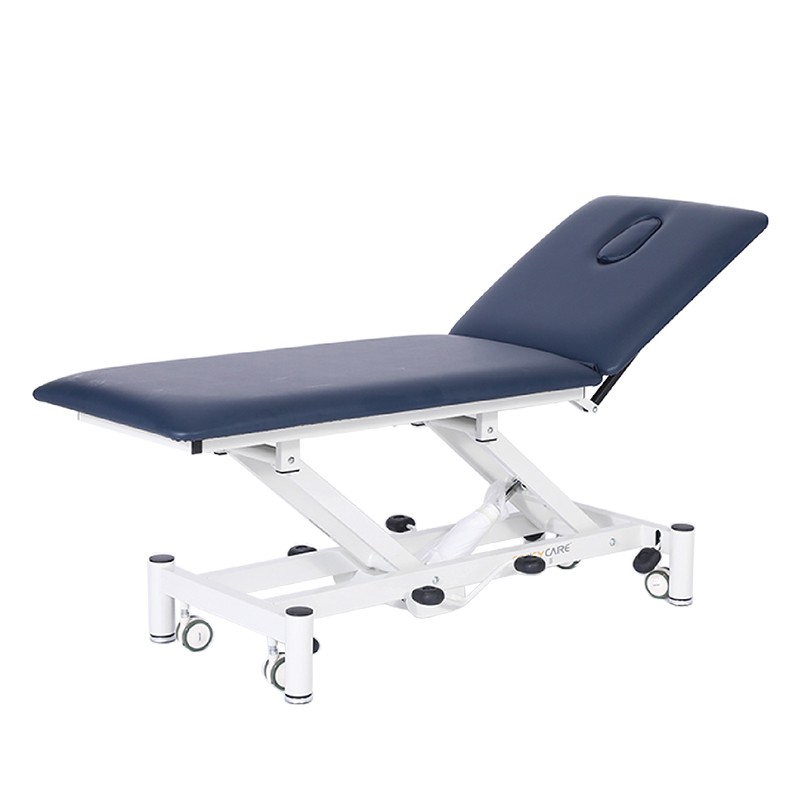

Hydraulic treatment table

Description：

EL series Hydraulic Treatment Table is designed from our 10 years manufactures and 5 years electric tables’ manufactures. We are honest to say those excellent tables are leading items of whole worlds.

This Hydraulic Treatment Table has a very strong table designed to withstand constant heavy use with minimal maintenance.

This Hydraulic Treatment Table addresses the requirements of a wide range of manual handling issues to benefit both patient and doctor.

The operation video: https://youtu.be/d7kylExWQBw

Standard Specification：

1. One hydraulic motor standard supports for Hi-Lo function.

2. Height control from 53cm to 84cm by hydraulic pumps manual operation.

3. Adjustable backrest featuring double gas struts, angle adjustable from -20° to +75°.

4. Able to lift up to 250kgs working weight from its lowest height.

5. Retractable castors 75mm for excellent mobility and safety.

6. Hydraulic treatment table sleek design with four rounded frame legs for safety.

7. Adjustable feet on four frame legs work for uneven surfaces.

8. Fire/stain/mildew/oil/water/wear resistant Med PVC available in 6 kinds of colors.

9. Certificates: CE, FDA, ISO9001-2008, ISO13485-2007.

Standard Options：

1. Extra 2cm foam thickness for upholstery.

2. Paper roll holder is available

3. Fold-down Side Support (Pair)

4. Contact us for more available optional.

Dimensions：

Upholstery Length: 195cm

Back Section Length: 67cm

Body Section Length: 123cm

Upholstery Width: 66cm

Adjustable Height: 53cm – 84cm

Foam Thickness: 5cm

Foam Density: 36g/m2

Open: 195 x 66 x (53-84) cm

Packing: 199 x 71 x 61cm (Heavy carton)

N.W./G.W.: 57/70kgs

20GP/40GP:32/72pcs

Hydraulic treatment table Size picture:
