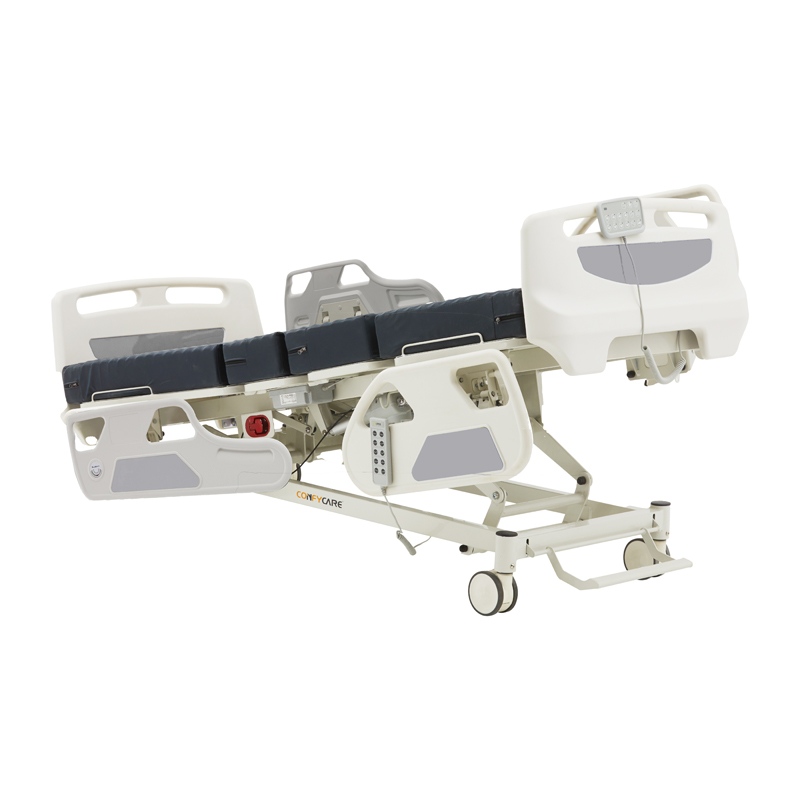

5 function hospital ICU bed

Features:

Electrically operated backrest, height and  knee break angle

Backrest Manual Emergency CPR release with handle release at both sides.

Removable head/foot board

Four ABS safety side rails

Patient handset and nurse control panel

Battery backup

Handset with integral function lockout

heavy duty IV pole

4 urine bag holders on both sides

Bottom LED light

Cardiac chair position

Auto contour-simultaneous adjustment of the backrest and knee-break

125mm（5inches） heavy duty central Locking castors

The operation video link: https://youtu.be/6wAkJVsm_K8

Specification:

Mattress platform height：440mm-740mm

Overall length：2200mm

Overall width: 1020mm

Under bed clearance minimum: 160mm

Mattress platform length:1950mm

Mattress platform width:900mm

Backrest angle ：0 -73 °

Knee break angle ：0 -30 °

Trendelenburg & reverse Trendelenburg：0 -13°

4 units of  Ti-motion motors

Safe working load:250kgs

Maximum user weight:200kgs

Packing: 213 x 105 x 60cm (Heavy carton)

N.W./G.W.: 160/180kgs

20GP/40HQ: 18/44pcs
