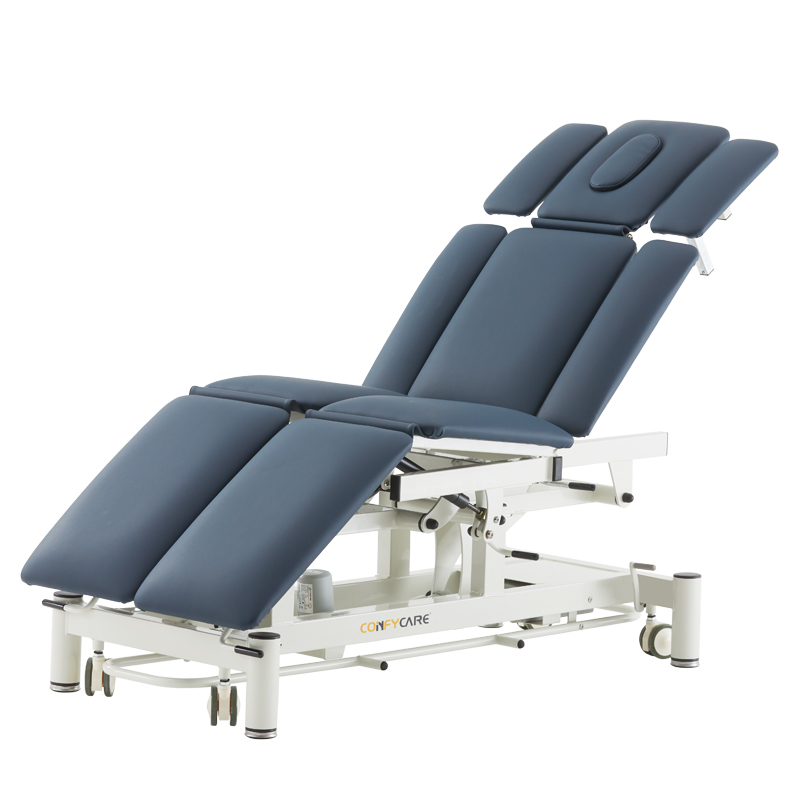

Adjustable medical examination couch
  • COINFYCARE
  • CHINA
  • 30-40 days
  • 1000 pcs
  • EL10

This Adjustable medical examination couch addresses the requirements of a wide range of manual handling issues to benefit both patient and doctor.

Description:

EL series Adjustable medical examination couch is designed from our 10 years manufactures and 5 years electric tables’ manufactures. We are honest to say those excellent tables  are leading items of whole worlds.

This Adjustable medical examination couch has a very strong table designed to withstand constant heavy use with minimal maintenance.

This Adjustable medical examination couch addresses the requirements of a wide range of manual handling issues to benefit both patient and doctor.

Youtube video link: https://youtu.be/k-JvFpqDDts

The Operation video: https://youtu.be/NWsQ8CgR1No


Standard Specification:

1. One electric motor, standard supports "Timotion" brand for Hi-Lo function.

2. All gas struts standard supports “Stabilus” brands.

3. Height control from 52cm to 96cm in approx 30 seconds by footbar system.

4. Adjustable head section featuring single gas strut, angle adjustable from -45° to +35°.

5. Adjustable backrest featuring double gas struts, angle adjustable from 0° to +55°.

6. Adjustable seat section featuring double gas struts, angle adjustable from 0° to +20°.

7. Adjustable leg section featuring double gas struts, angle adjustable from 0° to -45°.

8. Adjustable medical examination couch Easy to adjustable arm rest and arm supports, very strong.

9. Can able to lift up to 250kgs working weight from its lowest height.

10. Retractable castors 75mm for excellent mobility and safety.

11. Adjustable medical examination couch sleek design with four rounded frame legs for safety.

12. Adjustable feet on four frame legs work for uneven surfaces.

13. Fire/stain/mildew/oil/water/wear resistant Med PVC available in 6 kinds of colors.

14. Certificates: CE, FDA, ISO13485-2016, EN60601.

medical examination couch

Standard Options:

1. Adjustable medical examination couch EL10F: Foot Switch.

2. Extra 2cm foam thickness for upholstery.

3. Hand switch is available.

4. Paper roll holder is available.

5. Contact us for more available optional.

Electric examination table

Dimensions:

Upholstery Length: 195cm

Head section Length: 37cm

Middle section Length: 43 + 50 cm (*2)

Leg section Length: 50cm

Foot section Length: 57cm

Upholstery Width: 67cm

Adjustable Height: 52cm–96cm

Foam Thickness: 5cm

Foam Density: 36g/m2

Open: 195 x 67 x (52-96)cm

Packing: 194 x 70 x 53cm (Heavy carton)

N.W./G.W.: 85/100kgs

20GP/40HQ: 36/72pcs

Adjustable medical examination couch Size picture:

Electric examination couch
